Review: Team Associated T5M Stadium Truck

For years now, Stadium Trucks have taken a back seat to the monstrous short course fad. While basically the same platform, many prefer the closed body type of the short course truck and the ability to rub fenders on the track without the fear of tangling tires. That is slowly changing, however, with the Stadium Truck class becoming more prominent at both the local and National level. Team Associated’s T5M is a perfect example of the trend changing; this 2WD Stadium Truck became available before any of the A-Team’s SC offerings were revamped. Based on the excellent B5M, this truck is probably one of the best ST platforms I’ve ever driven. It’s got it all – steering, stability, jumping, cornering … oh, and it looks cool, too! It’s time to dig into the details of this beautiful Stadium Truck.

AT A GLANCE
WHO MAKES IT: Team Associated
WHO IT’S FOR: Any racer that wants to win
PART NUMBER: 70001
HOW MUCH: $279.99
BUILD TYPE: Kit

FEATURE BREAKDOWN
• The chassis on the T5M is basically a longer version of what’s found on the B5M. It’s a 2.5mm hard-anodized aluminum plate that incorporates a plastic top ‘cradle’. This cradle keys to the front clip to form a very rigid setup. It sections off space for the servo, electronics and battery as well as keying to the transmission. One thing you’ll notice is that the servo now mounts from the top instead of the bottom of the chassis. In fact, AE has reduced the number of screw holes in the bottom altogether. This factor is helpful when it’s time for cleaning or maintenance; you don’t have to spend extra time picking all the dirt out of the screw heads. For those of you that like tidy wiring, you’ll be happy to see that AE has also cut openings in the bottom edge of the cradle. This allows you to feed the servo and ESC wires under the cradle instead of over. In fact, AE has added an additional tunnel from the ESC section to the motor, allowing you to feed the Hall Sensor wire under the battery. Pretty slick idea!

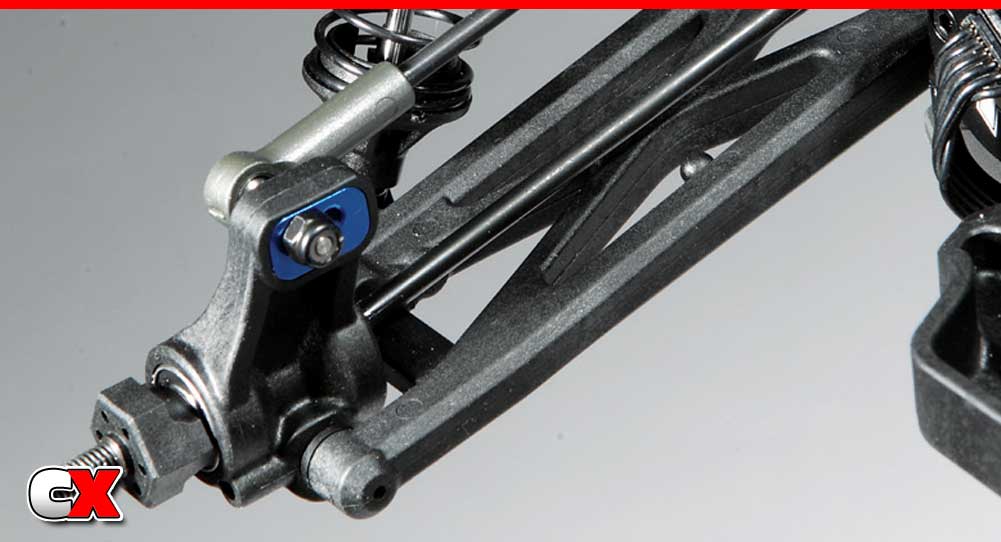

• The suspension on the T5M is five-star. The front features interchangeable front arms, meaning you can buy one set and use them on either side. One major sore spot of mine on AE’s previous trucks were the wimpy ballcups. Thankfully this has been addressed with the addition of these huge and heavy duty replacements! Updating these adds to the durability and makes you less likely to drop out of a race due to a ballcup failure. For tuning, there are a bunch of included inserts to change caster, axle location (inline to trailing), toe and rear camber link spacing. There is even an additional bulkhead to change the front kickup. Finally, we get to AE’s sensational V2 12mm Big Bore shocks. These are some of the best racing shocks in the business, featuring a bottom-load design, bleeder cap, threaded aluminum bodies and optional offset spring cups. This suspension is about as good as it gets.

• The steering on the T5M features a dual bellcrank system that rolls on a set of quality, precision bearings. Adjustments include Ackermann (via shims), toe and bumpsteer. Red O-rings are placed over the steering rack ballstud to help take up any slop and a solid drag link is now found in place of traditional, threaded rod link. The servo is attached to the chassis from the top, using an effective ‘T’-type aluminum mount system. Typically, when mounting a servo, you need to do a few test-fits to make sure the servo mounts and the chassis mounts line up (before tightening everything down), but I didn’t have any issue getting the Reedy HV servo installed on the first time. Out on the steering knuckles, the new HD ballcups are angled and ‘cut’ so you can achieve full steering lock without them interfering with the wheels. It’s the small things like this that let you know you have a race-bred track truck sitting in front of you.

• The transmission in the truck sits in front of the rear shock tower, thus designating it as a mid-motor (MM, or T5M) design. Internally, there are four gears; the V2 aluminum top shaft, a pair of idler gears and the differential. The T5M comes with a ball diff (YES – I love me some ball diffs!) that includes 14 carbide balls and a pair of precision bearings. Once built, it’s an extremely smooth unit that is fully adjustable from outside the vehicle. The transmission also features the full-bearing treatment as well as a blue aluminum motor plate and Factory Team V2 slipper clutch. Transferring the monstrous power of Reedy’s Sonic 540 Mach 2 7.0T brushless motor to the rear wheels is a set of heavy duty CVA axles.

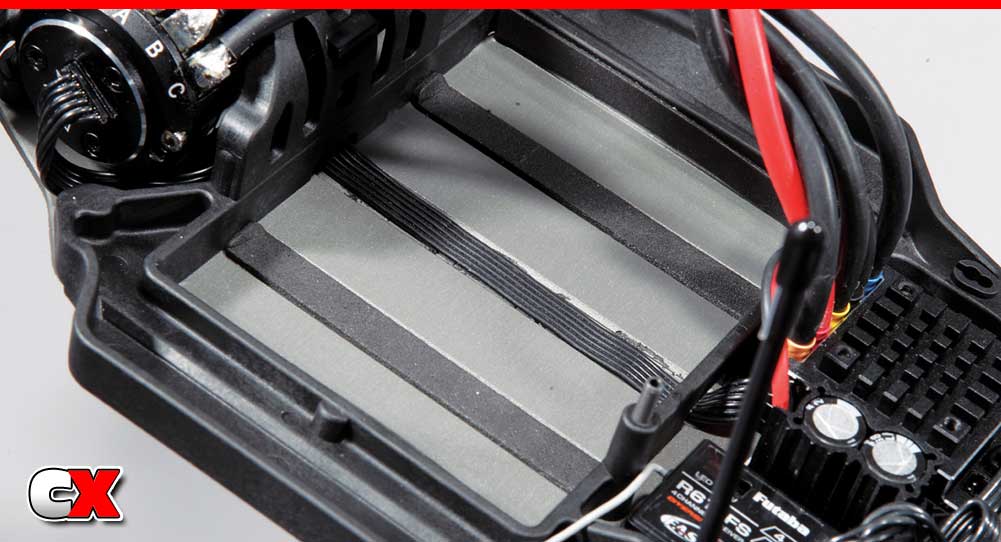

• AE has designed the battery tray to accept three different types of LiPo packs; saddle, shorty or brick packs. Saddle packs can be installed side by side and includes a thin foam battery spacer to adjust weight bias front to back. A shorty LiPo can be installed sideways and includes three foam battery spacers. This will most likely be the preferred layout as it allows the most adjustment. Finally, a brick LiPo pack can be installed as shown here and, as you can see, it takes up the whole space!

• I’d like to also touch on the body, wheels and tires. Pro-Line’s T5M body is included and features a cab-forward design as well as a pretty substantial wing. Painted and mounted, this combo looks fantastic. The T5M doesn’t include tires, which is becoming typical for most racer rides, but I found it a bit odd that wheels weren’t included either. I know new wheel designs like Pro-Line’s VTR and AKA’s EVO wheels are becoming popular, but that trend hasn’t filtered its way to Stadium Trucks yet. I just feel the omission of wheels with this kit won’t be a popular decision.

PROS
+ Based on the award-winning, race-winning and everyone-loving B5M design
+ Mid-motor layout helps center the weight for high-grip tracks
+ New HD ball ends that are super tough
+ Minimal screws installed through the bottom of the aluminum chassis
+ Battery tray accepts saddle, shorty or brick LiPo packs
+ Cool channel under the battery for the Hall Sensor wire
+ Lots of blue aluminum, including the rear ballstud mount
+ Extremely smooth Factory Team V2 12mm Big Bore shocks
+ Extra parts included to adjust caster, toe and kickup
+ Pro-Line body looks fantastic
+ Exceptional handling, jumping, acceleration and steering

CONS
– I can understand no tires being included, but no wheels?

ON THE TRACK
We headed to Wolcott Raceway’s indoor track for the T5M test session. Since it’s getting quite nice out (finally), most of the drivers have headed outside and into the spring sun, leaving us a wide open track to tear things up. The track has a nice sweeper (on and off the straight), an off-camber entry into turn one, a couple hairpins and a few jumps. Traction was also pretty good so the Pro-Line IONs would definitely be the right tire to lay down some fast laps. I charged up the Reedy brick pack, installed it and hit the track.

STEERING
In my experience, Team Associated vehicles have never been lacking in the steering department. At higher speeds, very little input is needed to get the T5M to complete the turn. Along with throttle control, I was able to keep the truck tight against the pipes coming on and off the straight. In the hairpins, I could use all the steering the T5M had to offer. It has excellent rotation at lower speeds and, as long as I didn’t overdrive it, I could get back in the throttle quickly on corner exit. I played with the rear of the truck a bit and was able to tune a little more traction into it, allowing me to drive it much harder off the corners. Feeling dialed!

ACCELERATION/BRAKING
As I was working on the rear of the truck to find a little extra traction, I found that my changes had increased forward bite overall. Coming off the sweeper and onto the straight, there was a pretty fine line where I could mash the throttle to get the truck flying down the straight in a controlled manner, especially with all that Reedy power fl owing through it. There were a couple of times where I was able to get the front tires off the ground for a split second, further proving that my changes were adding some definite rear grip. The sticky Pro-Line tires help this truck pull pretty hard, especially for a RWD platform. Braking into corners, however, required a little more control. Because AE trucks are pretty front-aggressive, heavy braking ended up in sideways slides. I turned the brakes down on my 4PX which helped, but I still needed to be a little tender on the brakes.

HANDLING/JUMPING
Handling on the T5M is as you would expect from a high-end Stadium Truck. Cornering is smooth and predictable with only a slight hint of understeer going in. Though there weren’t many rough sections of track, I did encounter a few footprints at the apex of a couple drive-hard corners. At first I was trying to pick a good line, weaving my way around the divots to avoid upsetting the truck. This wasn’t the fast line though and soon found myself just bombing the corner all willy-nilly. The T5M did deflect a bit when I hit the deeper ruts, but if I slowed down a tad it would easily keep its composure and simply rotate through the turns. Moving on to the jumps, one thing you might know about stadium trucks is that they jump like 2WD buggies; you don’t have to worry about air getting up under the bodies like short course trucks. This allows you to attack jumps without fear of kiting, giving the T5M a pretty aggressive presence in the air. I had to adjust the trucks attitude prior to lift off for a perfect flight (a slight increase or decrease of the throttle), but other than that it jumped like a pro. Landings ended with a solid thump before I was back in the throttle and powering to the next corner.

DURABILITY
I’d love to say that the test was uneventful in the crash department, but once I got in the zone, I felt like I could push the truck harder and harder each lap. I can say, however, that even after a few rough-and-tumbles the T5M came away with nothing but a scratched body and slightly creased wing (that’s a big piece of Lexan hanging off the back). The aluminum chassis is a sturdy backbone and, being mid-motor, nothing hangs off of it anymore save for the suspension bits. Did I mention that the new HD ballcups are impressive? You’re going to love these things!

SPECS & TUNING OPTIONS
DIMENSIONS
LENGTH: 15.9 in. (406mm)
WIDTH: Varies
WHEELBASE: 11.3 in. (289mm)

BODY, WHEELS AND TIRES
BODY: Clear Lexan Proline T5M body
WHEELS: Not included
WHEEL ADAPTER TYPE: 12mm hex
TIRES: Not included

SUSPENSION
TYPE: 4-wheel independent
SHOCK POSITIONS: (F) 3-tower, 2-arm, (R) 3-tower, 3-arm
CAMBER: Adjustable turnbuckles
ROLL: Adjustable ball heights
WHEELBASE: Adjustable with shims
RIDE HEIGHT: Threaded shocks

STEERING
TYPE: Dual bellcrank
TOE: Turnbuckles

CHASSIS
TYPE: Flat, narrow mid-motor design
MATERIAL: Hard-anodized aluminum
THICKNESS: 2.5mm

DRIVETRAIN
TYPE: 2WD
TRANSMISSION: Four gear, centrallymounted
DIFFERENTIAL: Ball diff
GEAR RATIO: Optional pinion gears
BEARINGS: Full shielded
CLUTCH TYPE: Adjustable Factory Team V2 slipper clutch

THE LAST WORD
Team Associated’s T5M is a brilliant piece of machinery. It’s a proven platform (thanks to the B5M) that translates well to the ST version. The handling is there. The jumping is there. The cornering and power-delivery are both top notch. I can honestly say that if you’re going to get back into the growing Stadium Truck market, this is how you do it! Excellent job, AE!
